Video Wall

Tools

• Allen keys, enough for 2 people
• B Matrix bolts

Rigging

Sometimes we clamp a pipe directly to truss

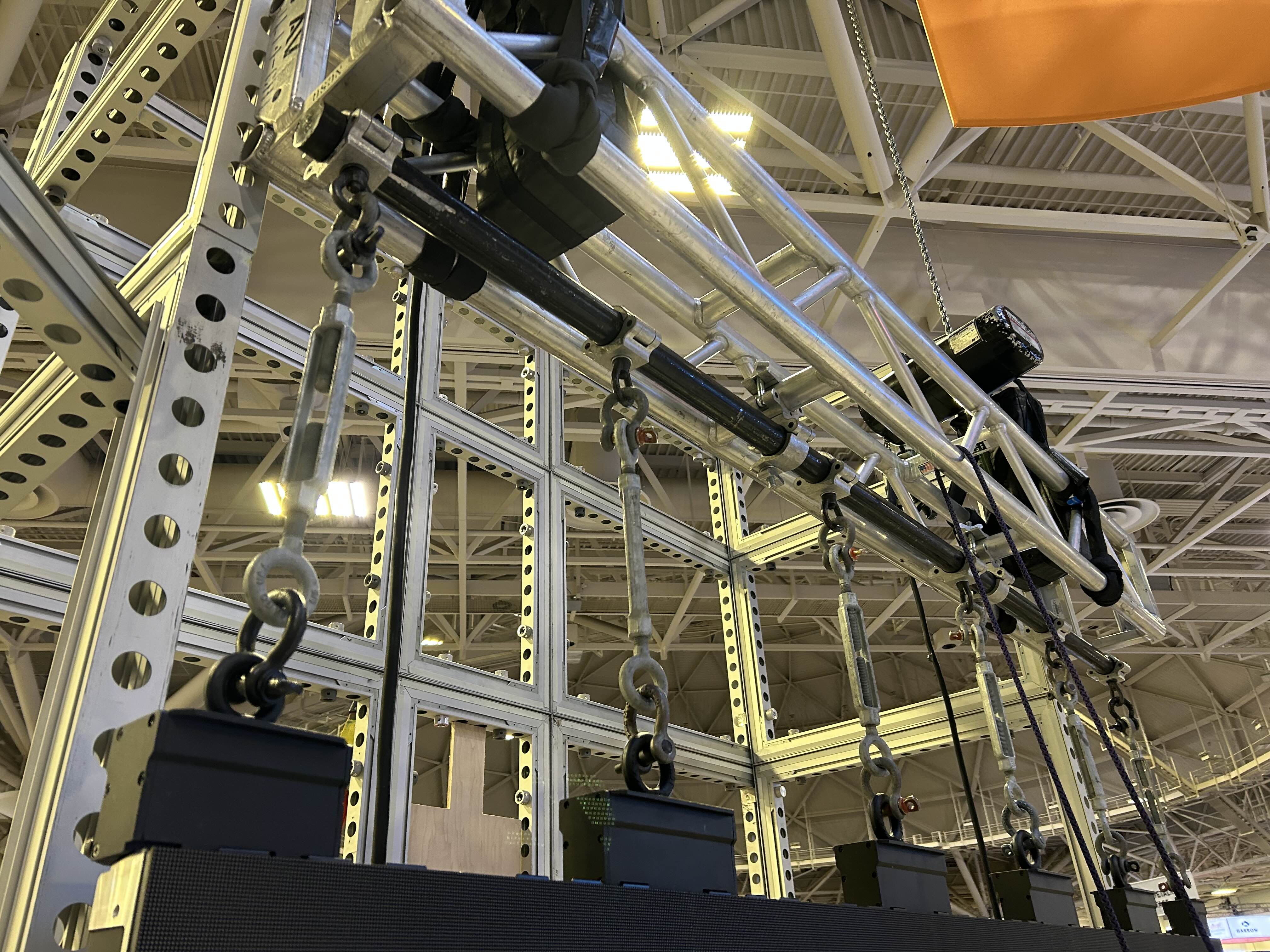

Top down connections

• Chain
• Motor
• Hook
• Spanset
• Swivel Cheeseborough
• Schedule 40 pipe

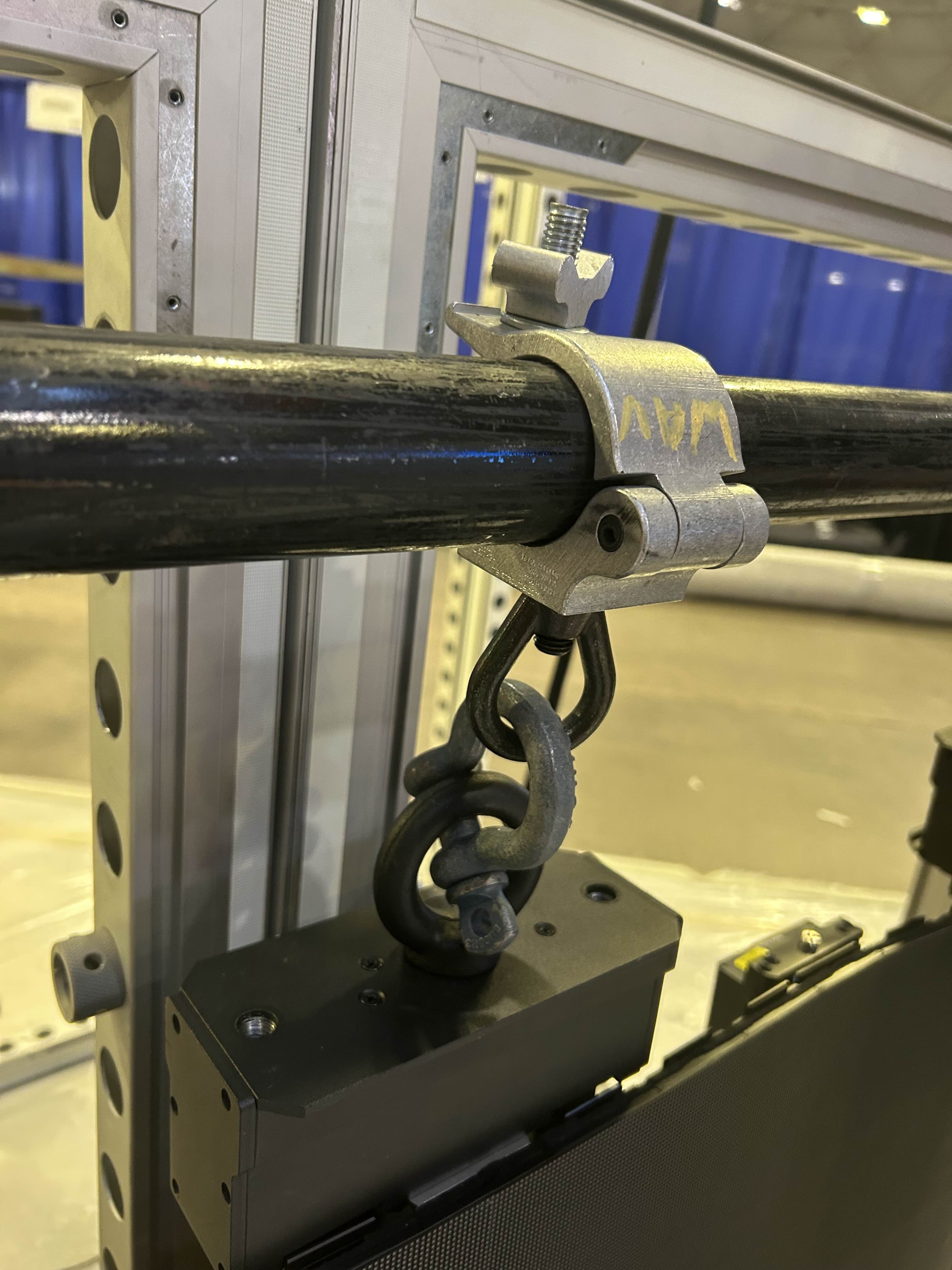

• Half Cheese to eyehook
• Shackle
• Turn Buckle
• Shackle
• Middle or edge video wall attachement

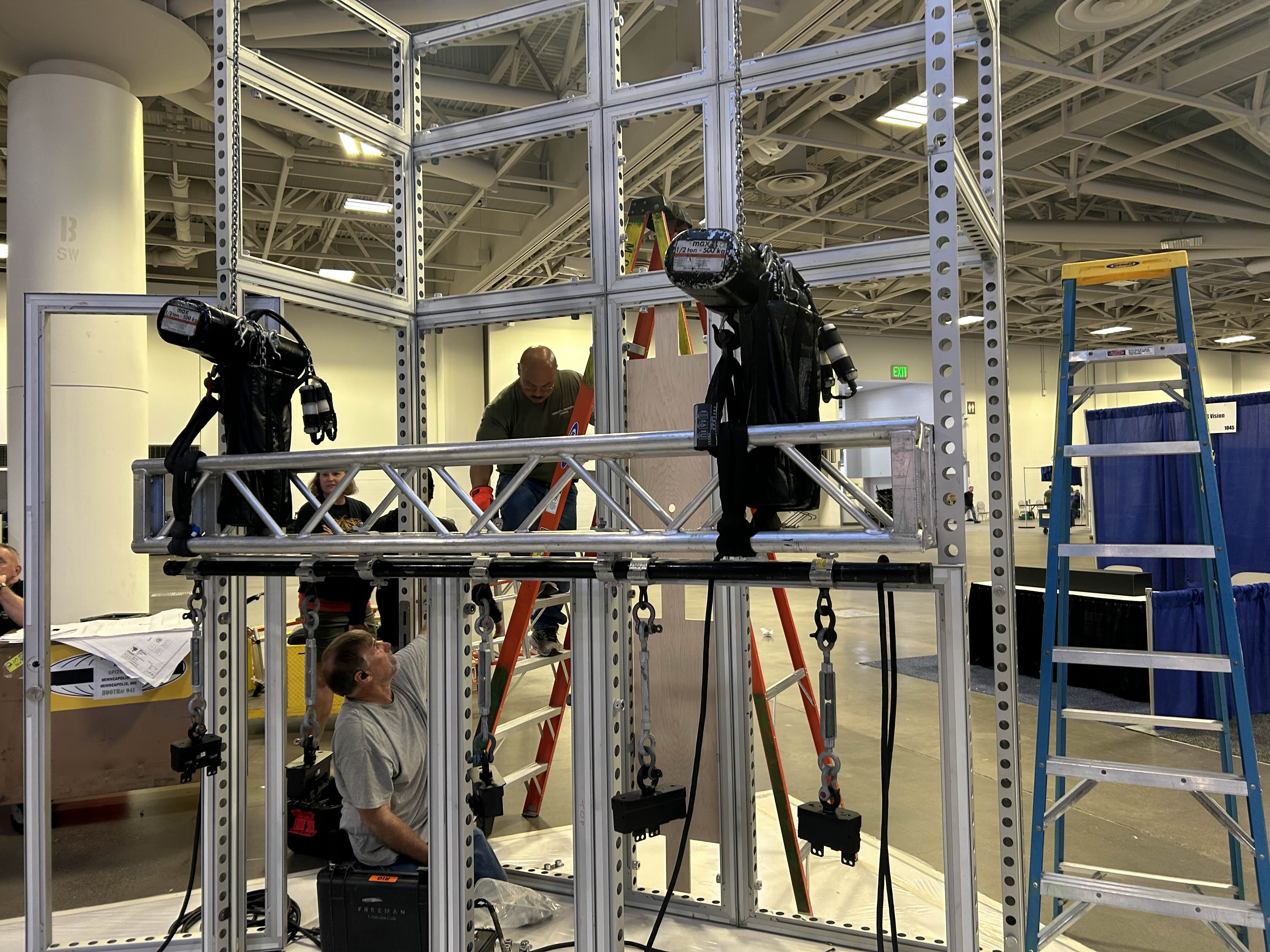

Sometimes we use air craft cable to hang the pipe lower than the truss. This can get the truss up out of the way in case it blocks logos

Top down connections

• Chain
• Motor
• Hook
• Spanset
• Truss
• Half Cheese to eyehook
• Air craft cable
• Half Cheese to eyehook
• Schedule 40 pipe
• Half Cheese to eyehook

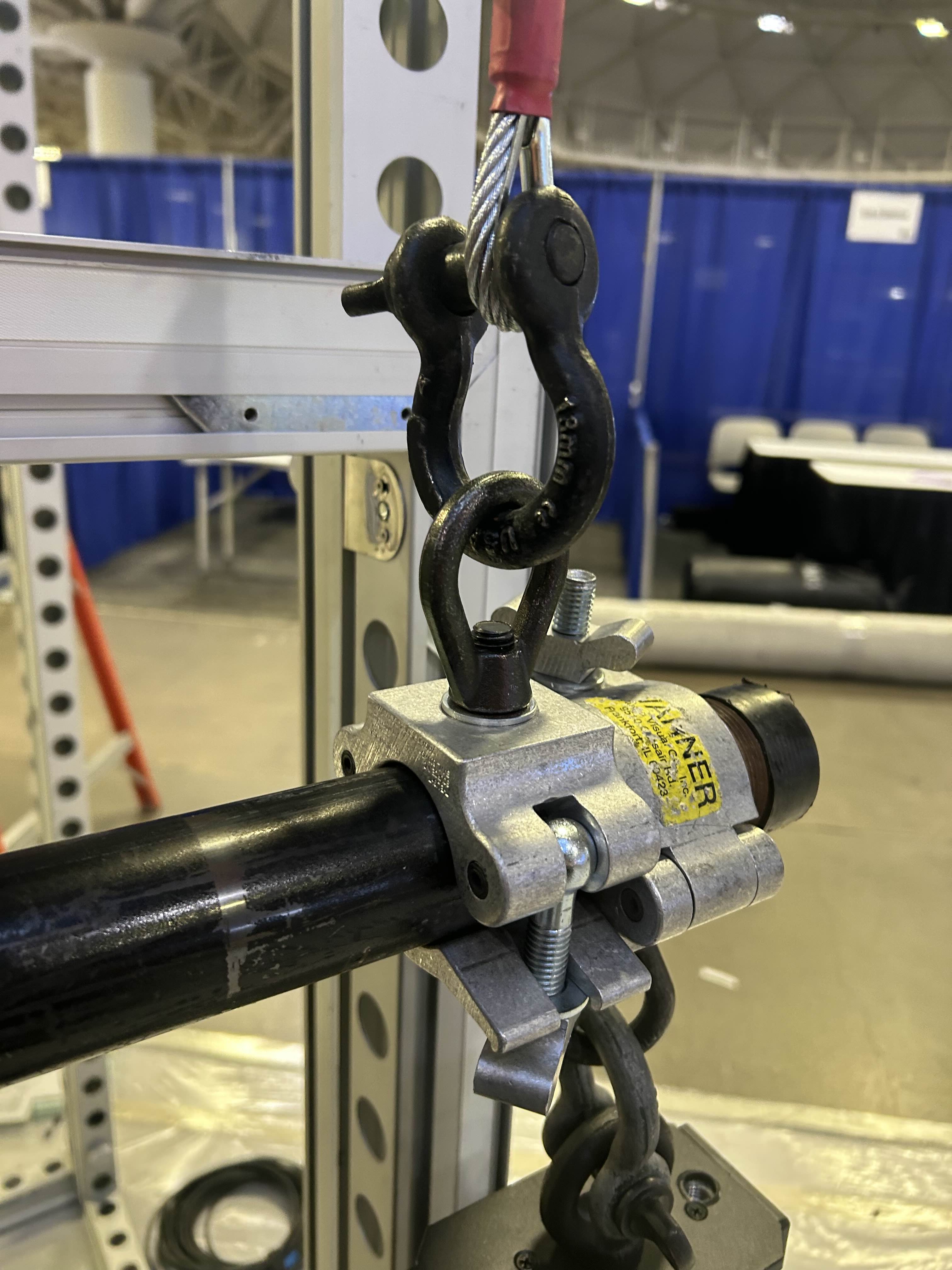

• Shackle
• Middle or edge video wall attachement

Things to note

• Turnbuckles help make sure each point is taking equal weight on the pipe
• The hanging point that attaches to the video wall tile, has 2 variations. One that goes on the edge, and one that connects between two panels
• 14 Panels can be put on a single circuit

Other stuff

• Data cable can into an output, and out of an input. Doesn't matter
• Tiles pixel resolution is 208 x 208
